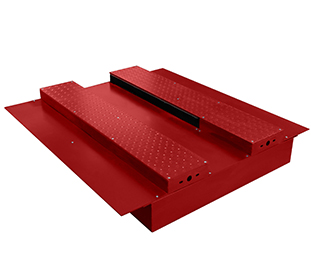

FJJ-300 Motorcycle External

72815501916
FJJ-300 Motorcycle External
(Picture is for reference only.)
Motor Vehicle Testing Benches
Waiting for upload

FJJ-300 Motorcycle External

Main Features:

It is used to measure the straight-line deviation of the front and rear wheel of motorcycle.

Main Specifications:
  1. Service conditions
    Ambient temperature: (0~40)℃
    Atmospheric pressure: 0.07MPa~0.106MPa
    Relative humidity: less than 85%
    Power voltage: AC220×(1±10%)V
    Power frequency: 50×(1±2%)Hz
    Permissible maximum axle-load: 3000N
    Permissible tire diameter: 300mm~750mm
    Permissible tire width: 40mm~250mm
  2. Power: 30W
  3. Dimensions(L×W×H): 1400×1080×270 (mm)
  4. Overall weight: 300kg
  5. Requirements for pump
  6. Air pressure: 0.5MPa~0.8MPa
    Air flow: 0.1m3 /min
